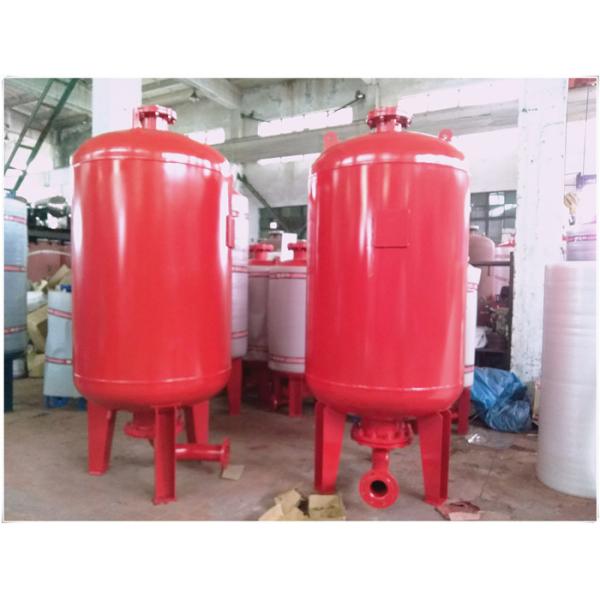

Excellent Sealability Diaphragm Pressure Tank , Pressurized Water Storage Tanks

    Buy cheap Excellent Sealability Diaphragm Pressure Tank , Pressurized Water Storage Tanks from wholesalers

    Buy cheap Excellent Sealability Diaphragm Pressure Tank , Pressurized Water Storage Tanks from wholesalers
    • Buy cheap Excellent Sealability Diaphragm Pressure Tank , Pressurized Water Storage Tanks from wholesalers

    Excellent Sealability Diaphragm Pressure Tank , Pressurized Water Storage Tanks

    Ask Lasest Price
    Brand Name : Shenjiang
    Model Number : SJ-2000-48
    Certification : ISO BV SGS CE ASME
    Price : Negotiation
    Payment Terms : D/A, D/P, L/C, T/T, Western Union, MoneyGram
    Supply Ability : 2000 sets one month
    Delivery Time : 15 days after received payment
    • Product Details
    • Company Profile

    Excellent Sealability Diaphragm Pressure Tank , Pressurized Water Storage Tanks

    1. Daily Use of Diaphragm Pressure Tank


    Diaphragm pressure tank water supply equipment is the use of compressed air tension to water to the water point of the general water supply equipment. To meet all walks of life production, life needs of automatic water supply. Air pressure equipment from birth to the present, after manual control, mechanical and electrical control, electronic control, to the present computer automatic control, showing a strong vitality. With the enamel anti-corrosion technology, natural film and stainless steel and other new materials, air pressure water supply equipment more in line with people's environmental protection, energy-saving concept of life.


    2. Features


    Diaphragm pressure tank is composed of steel shell, rubber diaphragm composed of energy storage devices. The rubber diaphragm separates the water chamber from the air chamber. The air in the tank is compressed when the outside pressure water is filled into the liner of the diaphragm type water tank. According to the Boyle gas law, the gas is compressed and the volume becomes smaller, the pressure rises and the energy is stored. The compressed gas can expand the water inside the rubber diaphragm from the tank. Such as fire pressure water supply equipment mainly by the fire main pump, regulator pump, fire control tank, pressure sensor, pressure control equipment, intelligent control cabinet and other components. The main pressure components for the capsule pressure tank, the tank filled with food-grade rubber capsules, extracorporeal inflatable phlegm, the capsule and the water system connected to both the water to prevent the wall of the device can also make the water pollution, but also Effectively eliminate water hammer phenomenon. The impact of the fire pump on the pipe network.


    3. Main Principle


    The main principle of the device is to use the gas tightness of the gas tank to adjust the volume of water in the system to achieve the control of the system pressure, it can meet the needs of the system water supply pressure, but also has a certain system to adjust the volume, Its role is equivalent to the water tower or high water tank.


    4. Maintenance Work of Diaphragm Pressure Tank


    Diaphragm pressure tanks are usually used in water supply systems, and small pressure tanks can be installed on pipelines in the water supply system. The large pressure tank itself has a larger weight, and when it is running it is filled with water, so it is more important, it will put a huge pressure on the pipeline, causing damage to the pipeline.


    Therefore, the user should install the pressure tank near the pipe, and then use a special hose to the pressure tank and the system pipe together. In order to improve the stability of the pressure tank, the user can use a special bracket to firmly fix the pressure tank on the ground, to avoid the location of the pressure tank to move.


    The pressure tank should be fitted with a safety valve before use. Once the water supply system has a problem, the safety valve can protect the pressure tank and prevent the pressure tank from being damaged. Users also need to use accurate measuring instruments to test the pressure of the air tank airbag, the actual value of the pressure and the instructions should be on the value of almost.


    If the user wants to use the pressure tank in a very special occasion, should be asked in advance of the manufacturers of pressure cans, only to understand the use of the pressure tank in the process of attention to what issues in order to more rational use of diaphragm-type pressure tank to improve the work effectiveness.


    The pressure tank has been filled with air pressure before it is sold. If the user feels that the pressure of the pressure tank is too large, the air tank can be deflated. Users should pay attention to the pressure tank airbag can not touch the sharp appliances, or airbags can not be used.


    Users should be based on actual needs to select the pressure tank model and size, size is not suitable for the pressure tank will cause some trouble to the user, affecting the use of pressure tank effect. Pressure tank and air conditioning, boilers, water heaters and other systems with the use, play a role in reducing system pressure, improve the stability of the system pressure.


    Pneumatic tank in the use of the process to pay attention to what the problem? Every year the user needs to check the pressure of the diaphragm pressure tank, once the pressure does not meet the requirements, the user should immediately inflated the pressure tank. The user must use the pressure tank according to the operating temperature and precautions on the operating instructions. Pressure tank with a long time, the ball will be tightly attached to the tank wall above, to bring great inconvenience to the maintenance. After installing the new airbag, check that the bolts of the fixed airbag are loose.


    5. Accessories


    The use of diaphragm-type pressure tank, it will cause a lot of accidents. The following parts are essential products. Safety valve must exist. Safety valve must also include the joint box to take over, this is the safety valve full set of supplies. In addition, the pressure gauge is also necessary, it can test the pressure in the diaphragm pressure tank. Of course, the diaphragm-type pressure tank must also need to drain the valve and take over. In addition, bolts, nuts and gaskets are also essential accessories.


    6. Parameter


    Diameter (mm)Pressure (MPA)Total Height (mm)Thickness (mm)Total Capacity (m3)Adjustable Volume (L)Outlet Diameter (mm)
    400112303.50.093050
    1.6550
    6000.617203.50.329050
    14.550
    1.6750
    8000.6223040.77217100
    16100
    1.66100
    10000.6237051.28400100
    17100
    1.67100
    12000.6274162.2677100
    16100
    1.68100
    14000.6296963.3970100
    16100
    1.69100
